NB – IoT Modem
เชื่อมต่ออุปกรณ์และเครื่องจักร ทุกที่ ทุกเวลา

คุณสมบัติทั่วไป

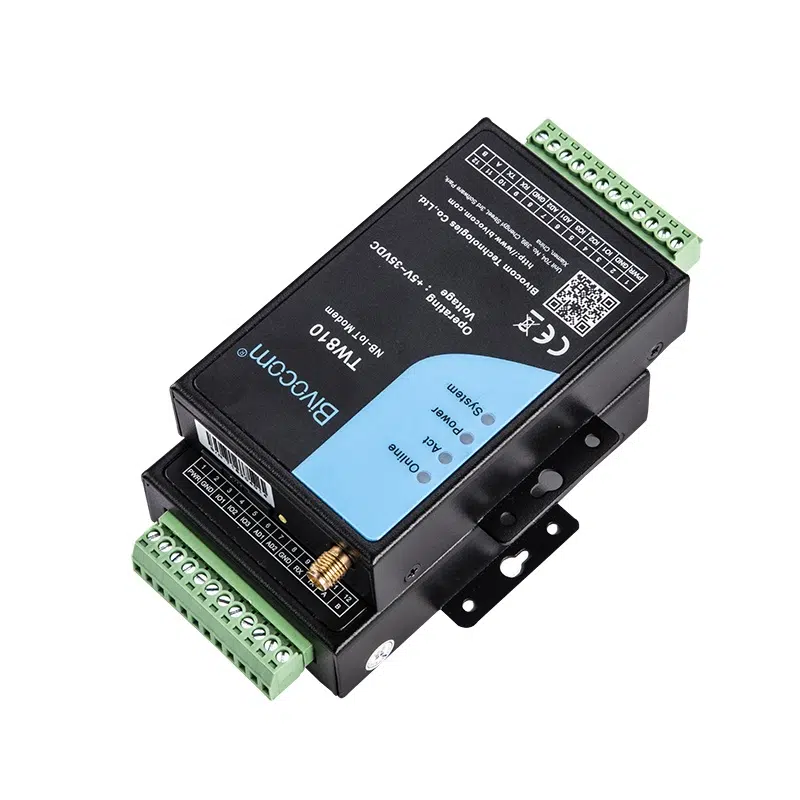

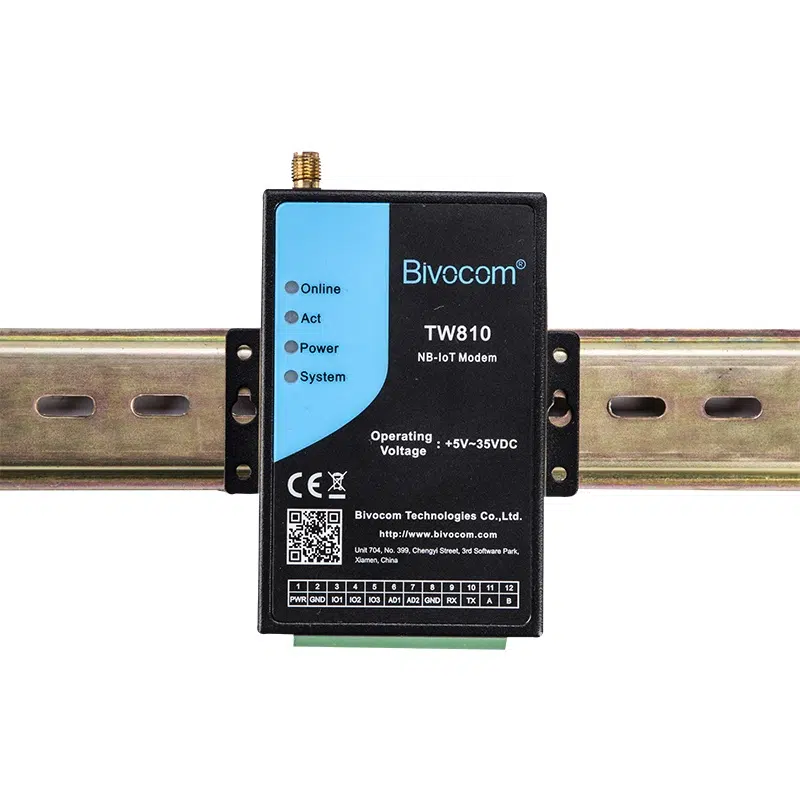

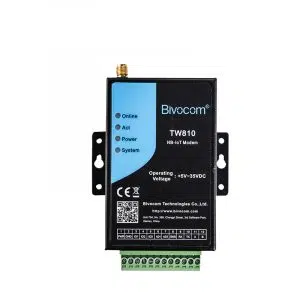

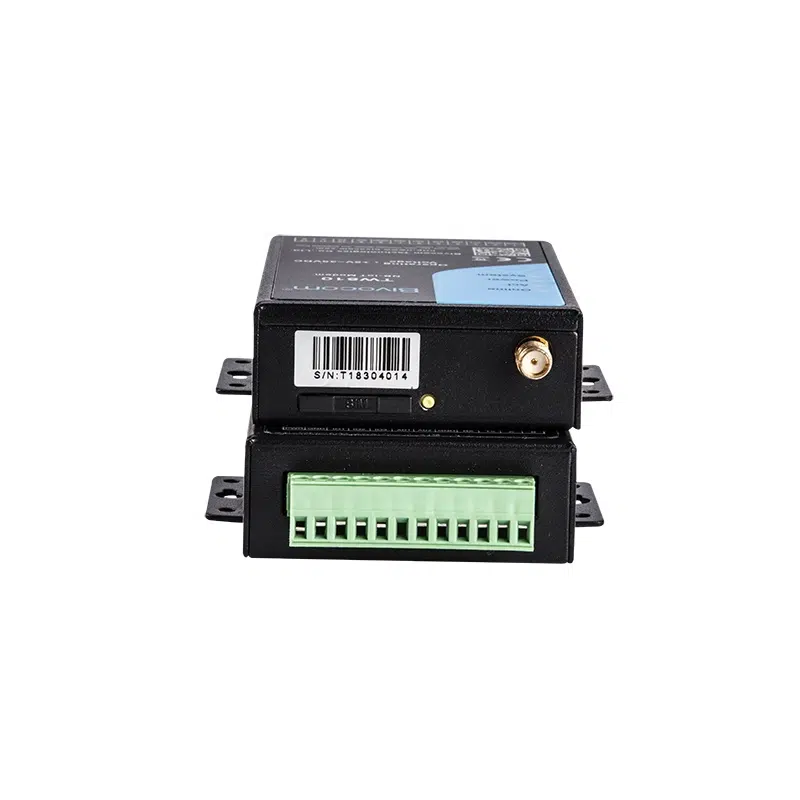

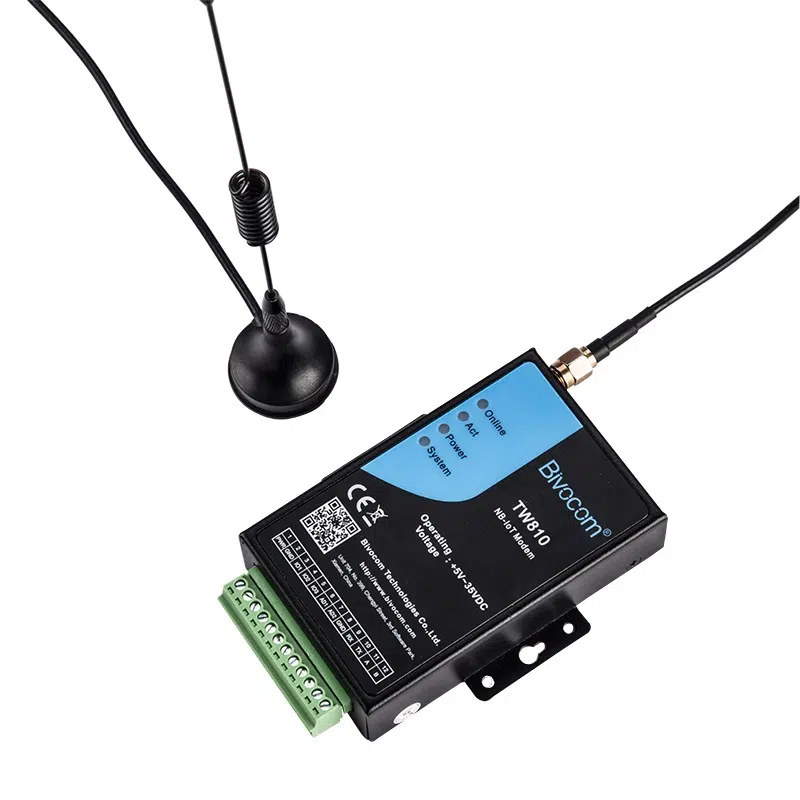

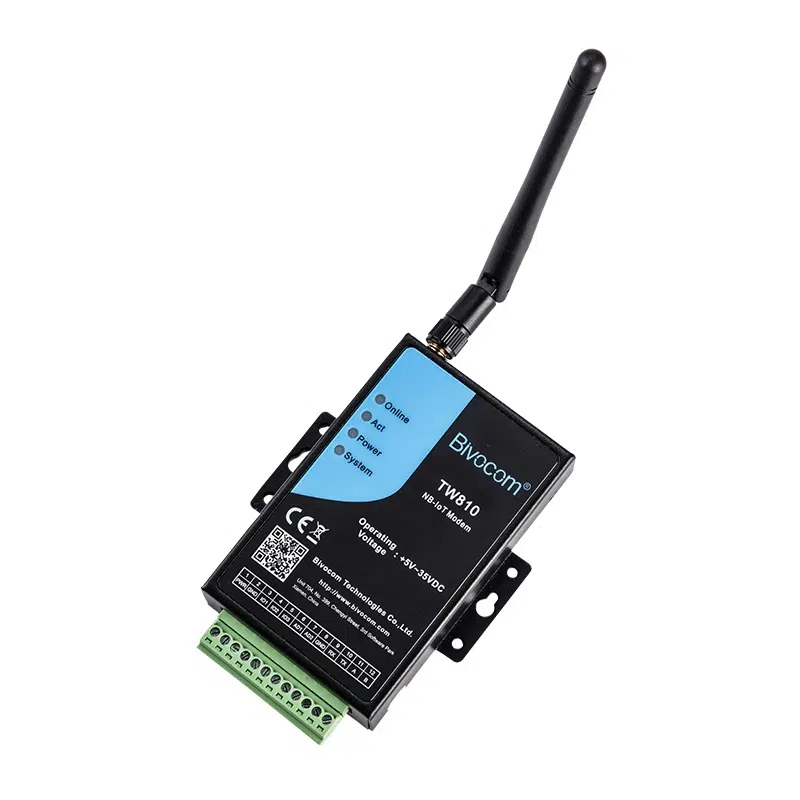

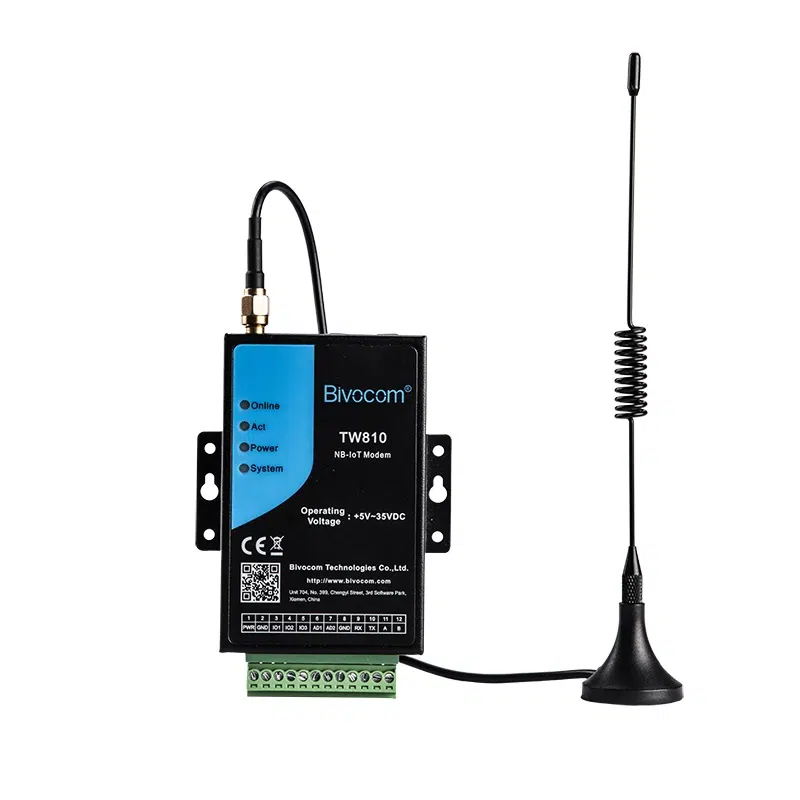

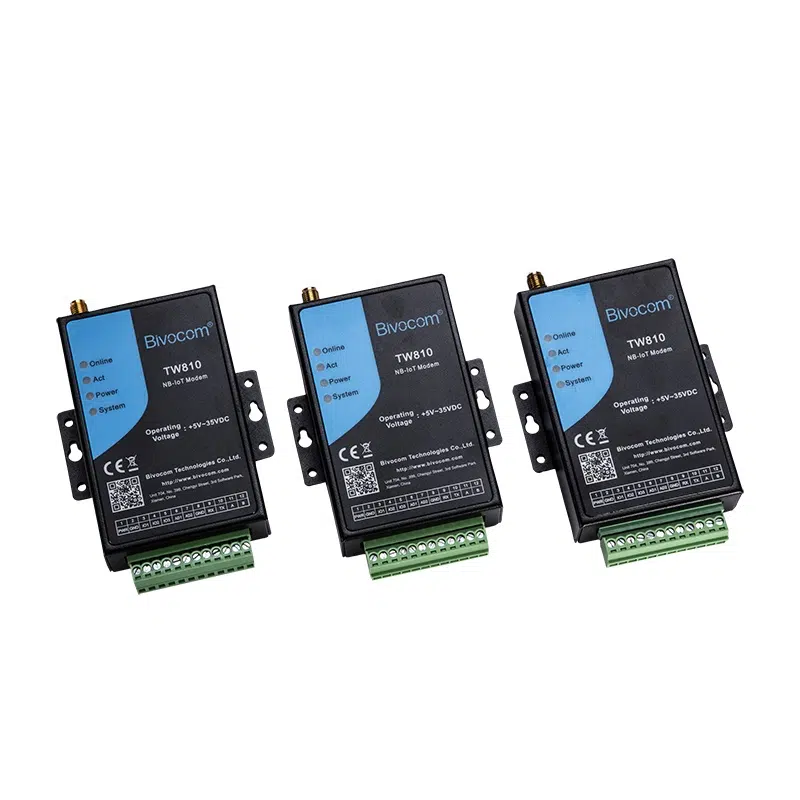

โมเด็ม NB-IoT รุ่น TW810 เป็นเทอร์มินัลไร้สายเกรดอุตสาหกรรมที่ใช้เทคโนโลยี LPWA ออกแบบมาเพื่อตอบสนองความต้องการมาตรฐานอุตสาหกรรมและผู้ใช้ในอุตสาหกรรมอย่างสมบูรณ์ โดยใช้ซีพียูอุตสาหกรรมแรงสูงชนิด 32 บิต รองรับซอฟต์แวร์ในตัวและกลไกการป้องกันฮาร์ดแวร์เพื่อความปลอดภัยและความเสถียรของอุปกรณ์ รองรับผู้ให้บริการ LTE CAT M1 (eMTC) และเครือข่าย NB-IoT และรองรับอินเทอร์เฟสที่หลากหลาย เช่น RS232, RS485 และ RS422 และ TTL GPIOs ซึ่งสามารถปรับแต่งได้ตามความต้องการ
โมเด็ม รุ่น TW810 ซีรี่ส์ LTE CAT M1 / NB-IoT สามารถช่วยให้ผู้ใช้เข้าถึงเครือข่าย LTE CAT M1 / NB-IoT ได้อย่างรวดเร็ว ใช้พลังงานต่ำและ data plan น้อยในการส่งข้อมูลที่ปลอดภัย เหมาะอย่างยิ่งสำหรับแอพพลิเคชั่น IOT (Internet of Things) และ M2M (Machine to Machine) และมีการใช้กันอย่างแพร่หลายในอีกหลายๆ อุตสาหกรรม อาทิเช่น สมาร์ทกริด, การวัดน้ำและก๊าซ, ไฟถนน, การอนุรักษ์สิ่งแวดล้อม, งานเกี่ยวกับพลังงาน ฯลฯ
- รองรับ NB-IoT, LTE CAT M1 และ รองรับ EDGE/GPRS (เฉพาะเวอร์ชั่น LTE-M)
- รองรับพอร์ต 1x RS232, 1x RS485 (Or RS422, option), 5x I/O (ตัวเลือกเสริม)
- การรับส่งข้อมูลที่โปร่งใส Transparent data transfer รองรับ UDP/IP และ COAP โปรโตคอล (เฉพาะเวอร์ชั่น NB-IoT) และ TCP IP และ UDP โปรโตคอล (เฉพาะเวอร์ชั่น LTE CAT M1)
- รองรับ Multi data centers (มากถึง 5 data center) เข้าถึง data center ได้ด้วย ชื่อโดเมน และ IP address.
- รองรับ heartbeat link detection, ให้อุปกรณ์มีการเชื่อมต่ออยู่ตลอดเวลา
- ระบบตรวจสอบฮาร์ดแวร์และซอฟต์แวร์อัตโนมัติ และซ่อมแซมตัวเองอัตโนมัติ
คุณสมบัติทางเทคนิค
System
CPU: Industrial 32-bit
Cellular Interface
LTE CAT M1: B1/B3/B5/B8, and NB-IoT, B1/B3/B8/B5/B20/B28 for option.
Cellular Antenna Interface
Number of ports: 1
Note: Standard SMA female antenna interface, characteristic impedance 50Ω
SIM Interface
Number of Ports: 1
Note: Standard drawer type card holder, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Serial Interface (Industrial terminal block)
Number of interfaces: 1x RS232, 1x RS485
Serial Communication Parameters
Baudrate: 300~230400bits/s
Data Bit: 5, 6, 7, 8 bits
Stop Bit: 1, 1.5, 2 bits
Check: No, Even-parity, Odd Parity, SPACE and MARK
Analog Input (Industrial terminal block)
Number of Ports: 2(Can be customized to 3)
Note: 10-bit AD, support 4-20mA current signal input, optional 0-5V voltage signal input
I/O (Industrial terminal block)
Numbers of Ports: 3x GPIOs, able to configured as input and output, communication level: 3.3V
Note: Built in 15KV ESD protection, TTL GPIOs is customizable.
Power Requirements
Standard Power: DC 12V/0.5A
Power Range: DC 5~35V
Communication Current: <85mA(12V)
Note: Built-in power inverting protection and over voltage protection
CPU: Industrial 32-bit
Cellular Interface
LTE CAT M1: B1/B3/B5/B8, and NB-IoT, B1/B3/B8/B5/B20/B28 for option.
Cellular Antenna Interface
Number of ports: 1
Note: Standard SMA female antenna interface, characteristic impedance 50Ω
SIM Interface
Number of Ports: 1
Note: Standard drawer type card holder, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Serial Interface (Industrial terminal block)
Number of interfaces: 1x RS232, 1x RS485
Serial Communication Parameters
Baudrate: 300~230400bits/s
Data Bit: 5, 6, 7, 8 bits
Stop Bit: 1, 1.5, 2 bits
Check: No, Even-parity, Odd Parity, SPACE and MARK
Analog Input (Industrial terminal block)
Number of Ports: 2(Can be customized to 3)
Note: 10-bit AD, support 4-20mA current signal input, optional 0-5V voltage signal input
I/O (Industrial terminal block)
Numbers of Ports: 3x GPIOs, able to configured as input and output, communication level: 3.3V
Note: Built in 15KV ESD protection, TTL GPIOs is customizable.
Power Requirements
Standard Power: DC 12V/0.5A
Power Range: DC 5~35V
Communication Current: <85mA(12V)
Note: Built-in power inverting protection and over voltage protection
Power Consumption
Communication: <1W
Note: 12V (<85mA), 5V (<155mA)
Standby: < 0.4W
Note: 12V (<30mA), 5V (<55mA)
Sleep: < 0.1W
Note: 12V (<0.8mA), 5V (<18mA)
LED Indicators
Online, Act, Power, System
Reliability
Ultra-low consumption design, includes sleep mode, scheduled online and offline mode
EMC up to level 3
Use NTP technology, build-in RTC
SIM/UIM card port built-in 15KV ESD protection
Warranty
Warranty Period: 12 months
Environmental Limits
Operating Temperature: -35~+75ºC (-31~+167 ºF)
Storage Temperature: -40~+80ºC (-40~+176 ºF)
Ambient Relative Humidity: 95%, non-condensing
Physical Characteristics
Protection Class: IP30, Housing and system are isolated safely, ideal for industrial automation application
Housing: Iron
Weight: 208g (0.46lbs)
Dimension: 91×58.5×22 mm (3.58×2.30×0.87 inches), Antenna and other accessories not included
