Cellular Gateways
เชื่อมต่ออินเตอร์เน็ตไร้สาย ให้กับทุกอุปกรณ์
คุณสมบัติทั่วไป

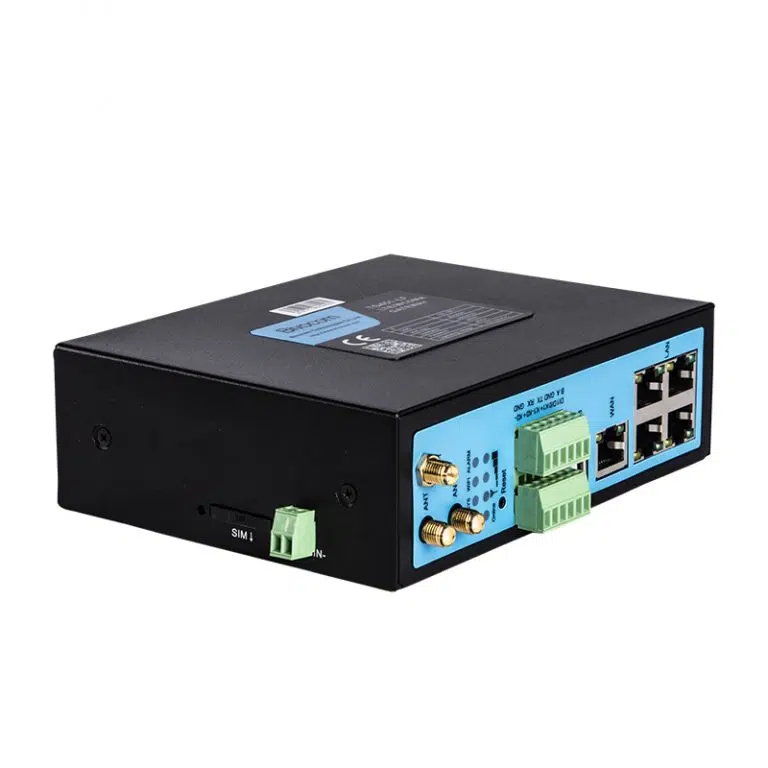

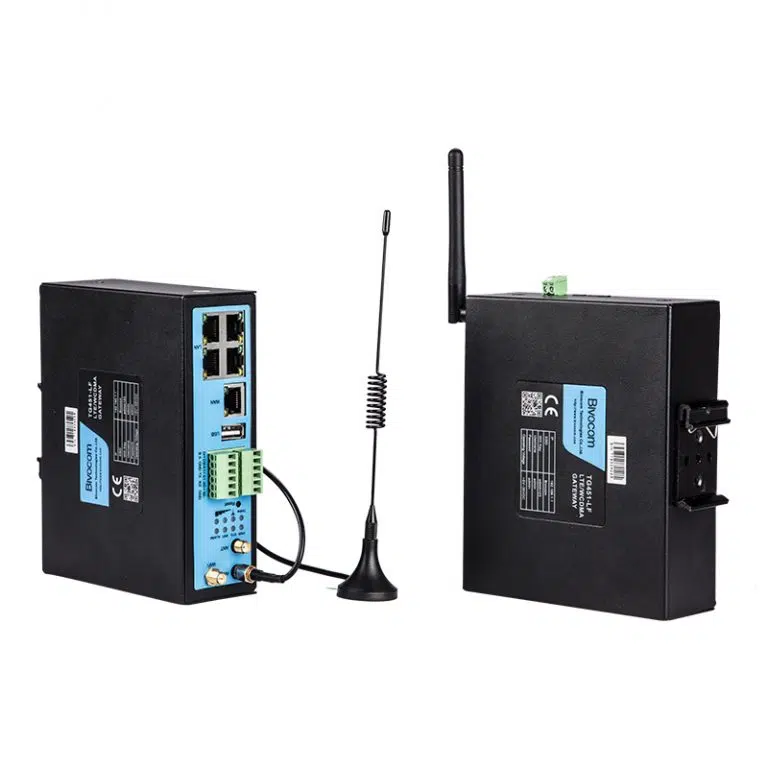

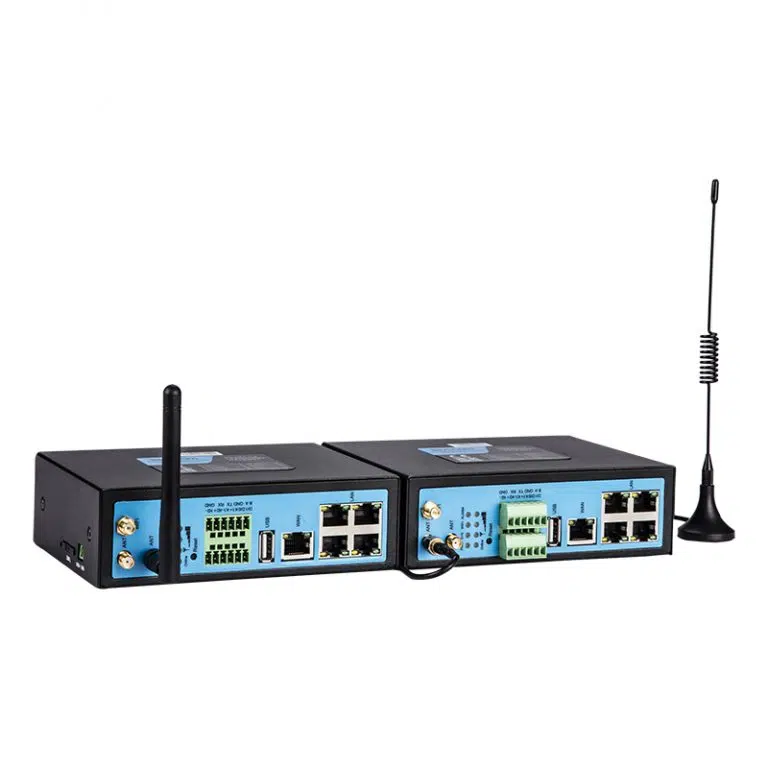

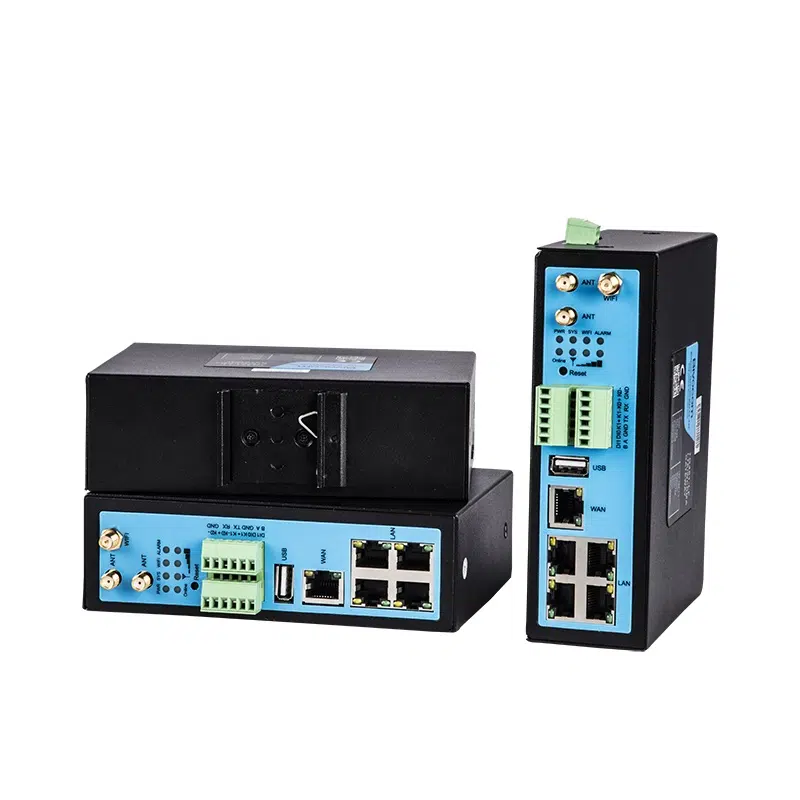

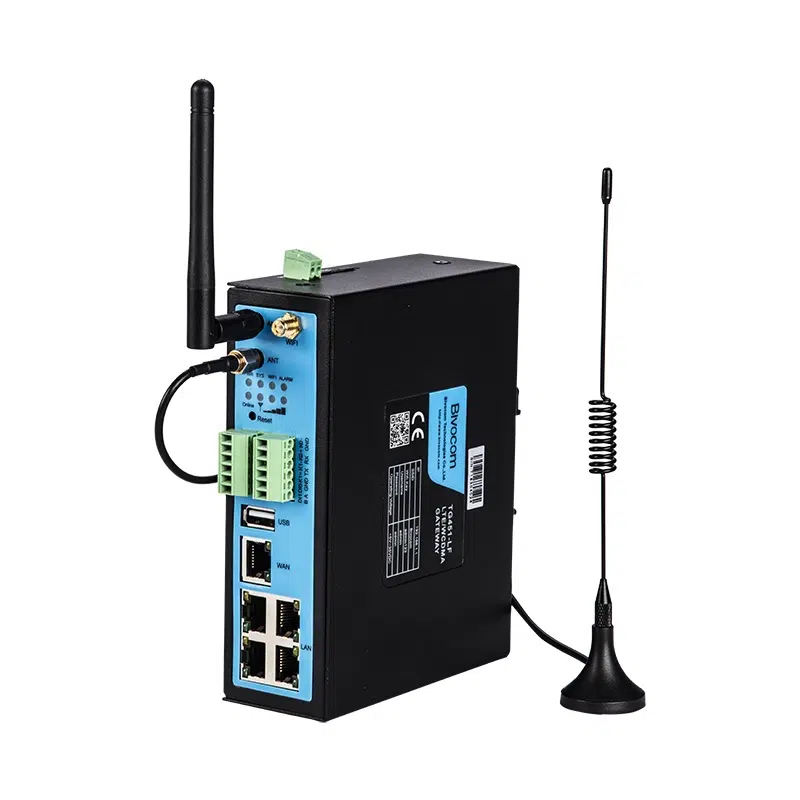

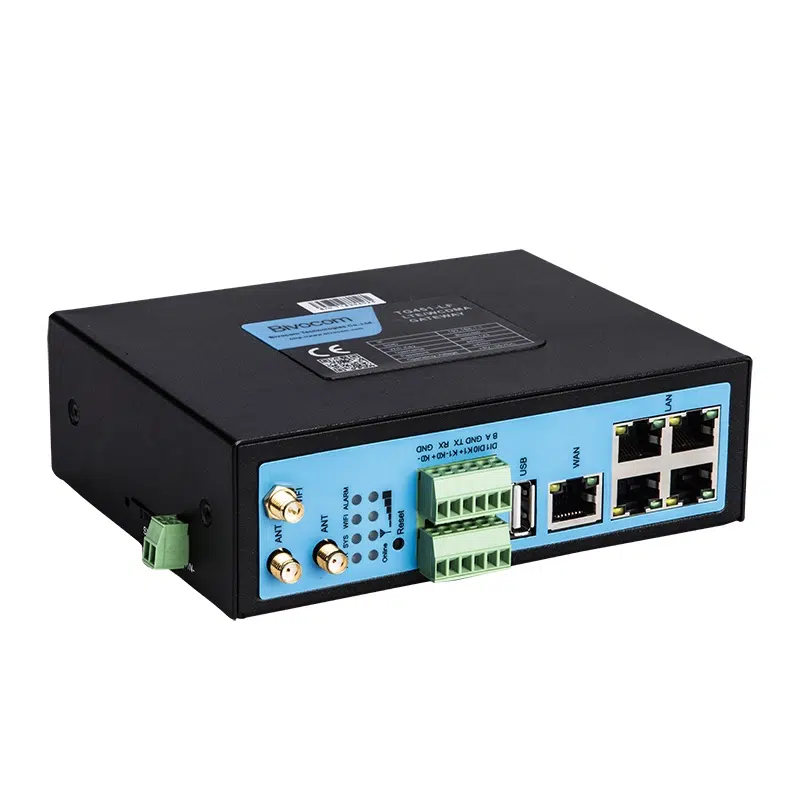

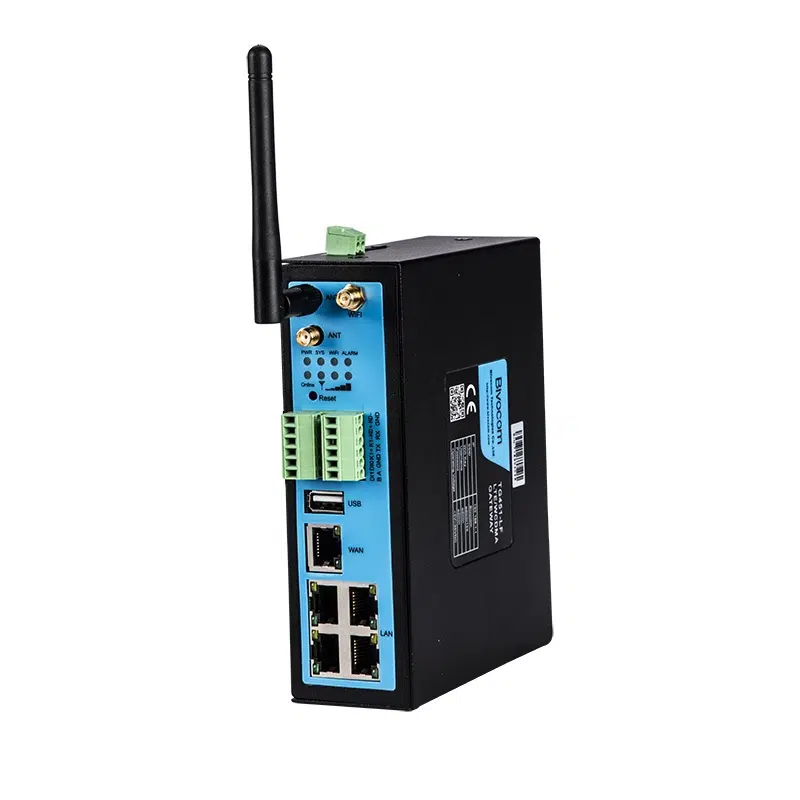

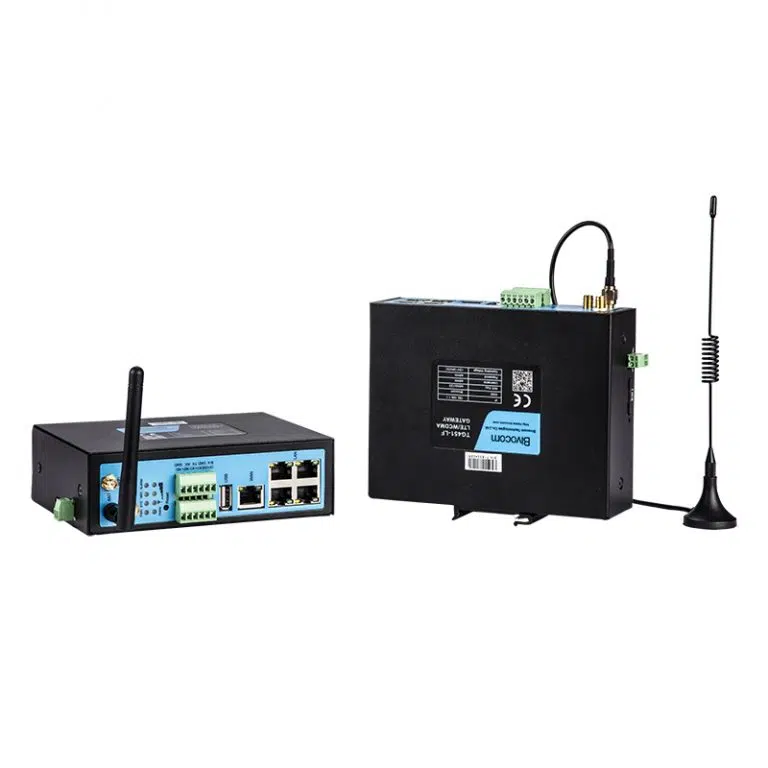

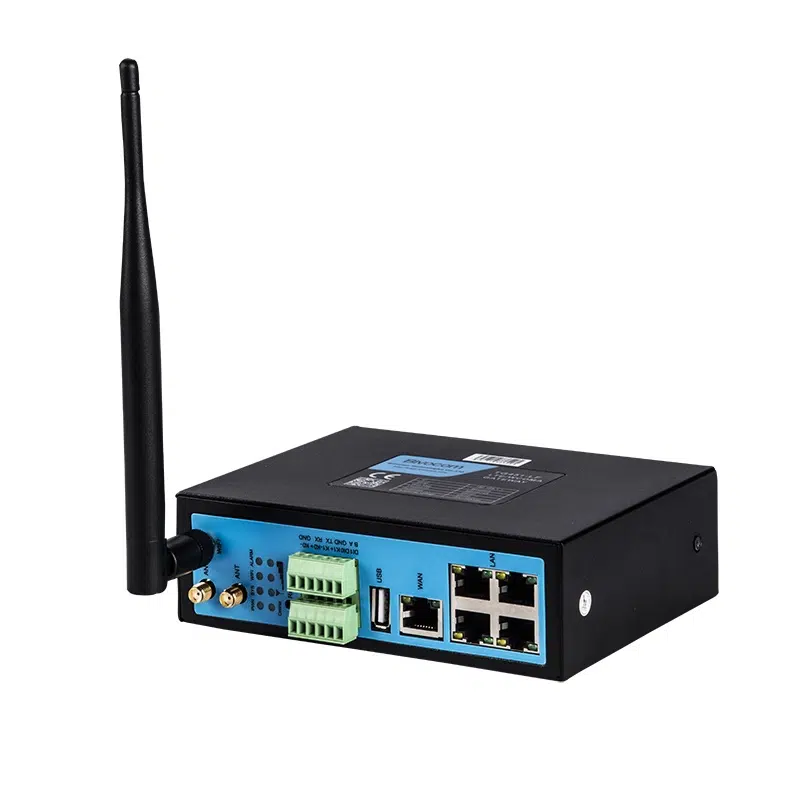

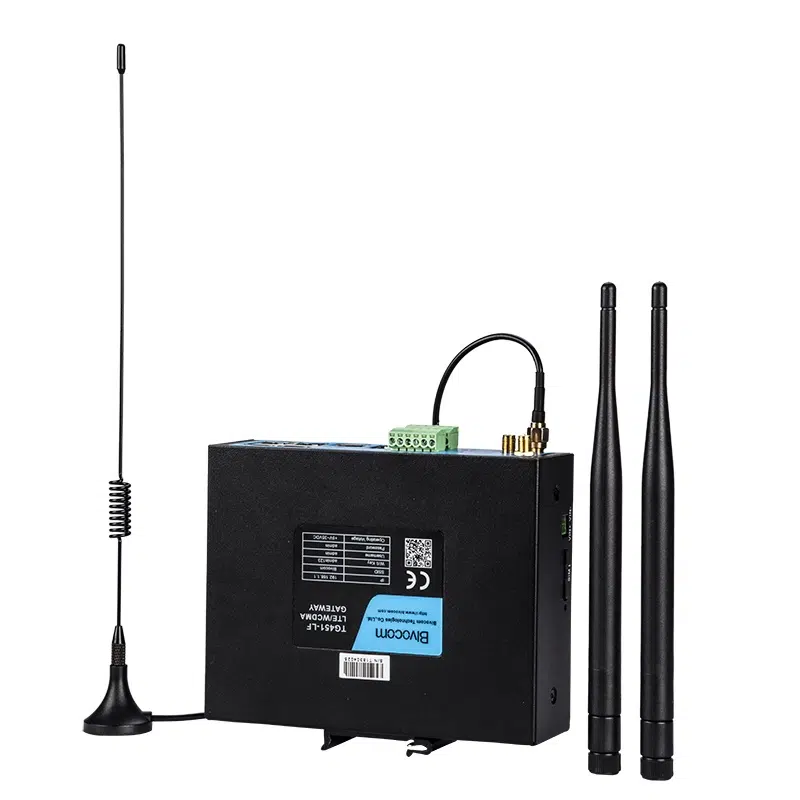

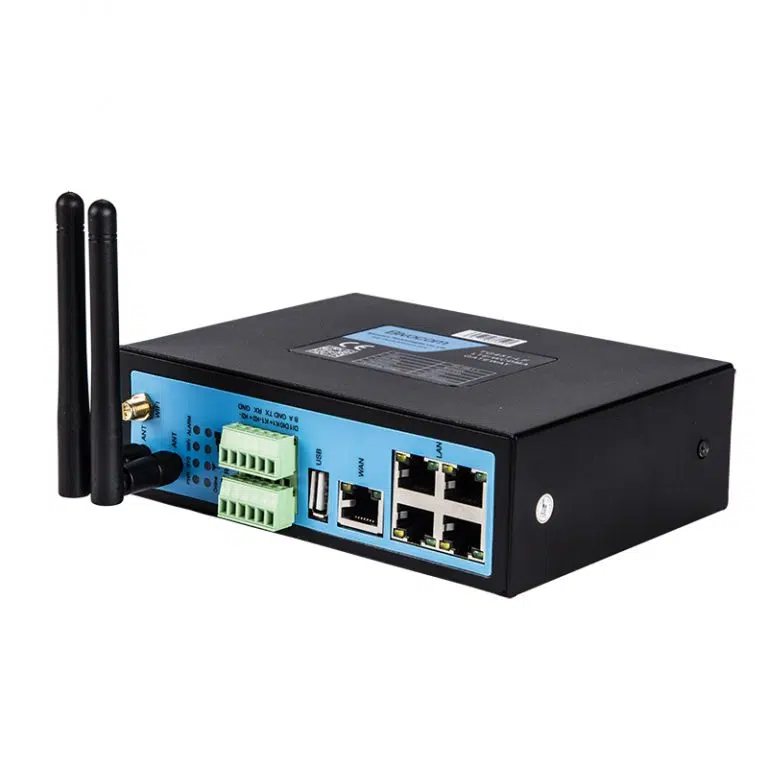

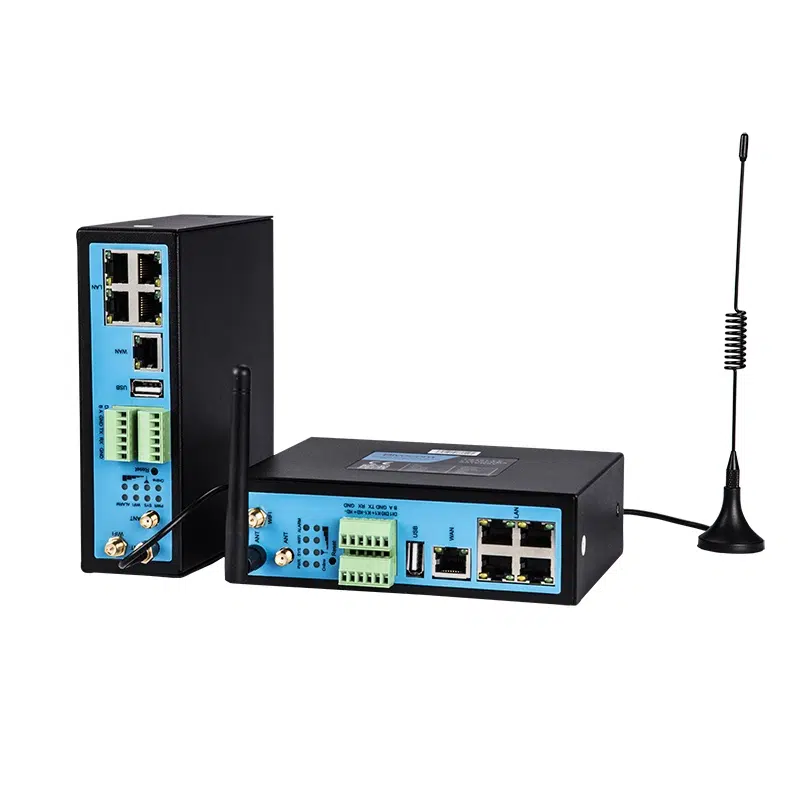

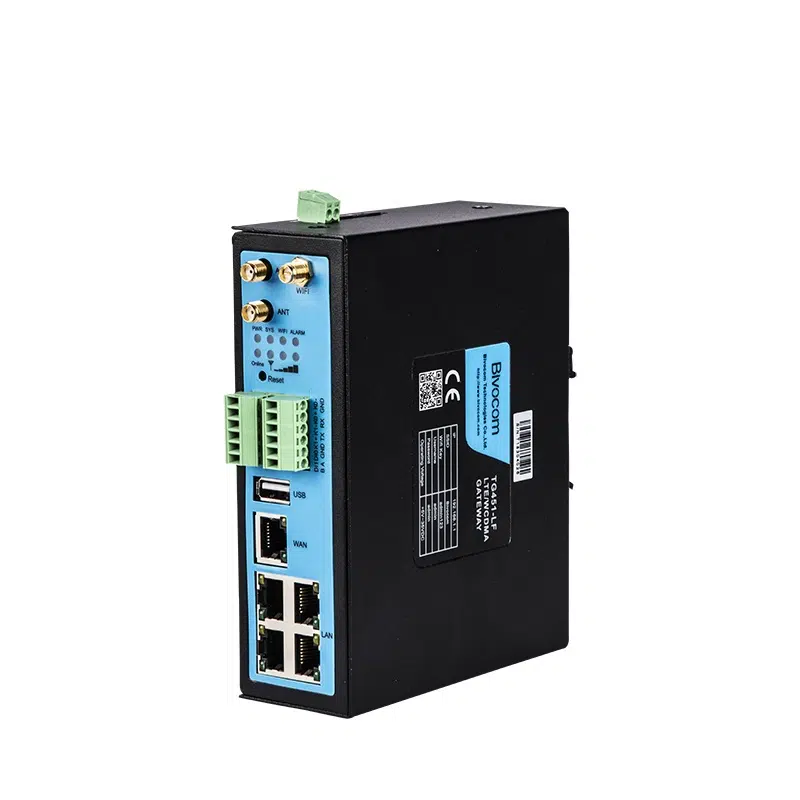

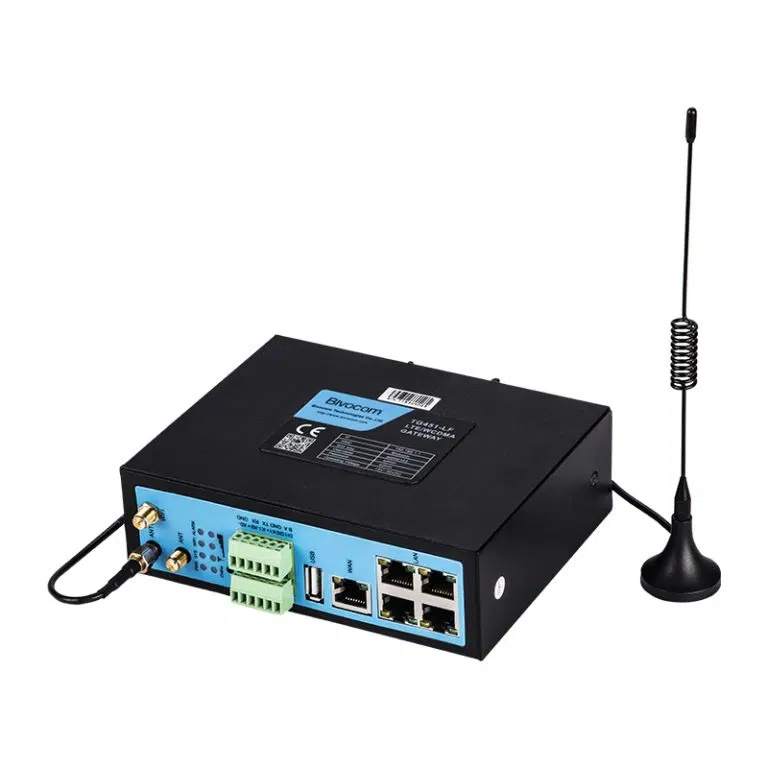

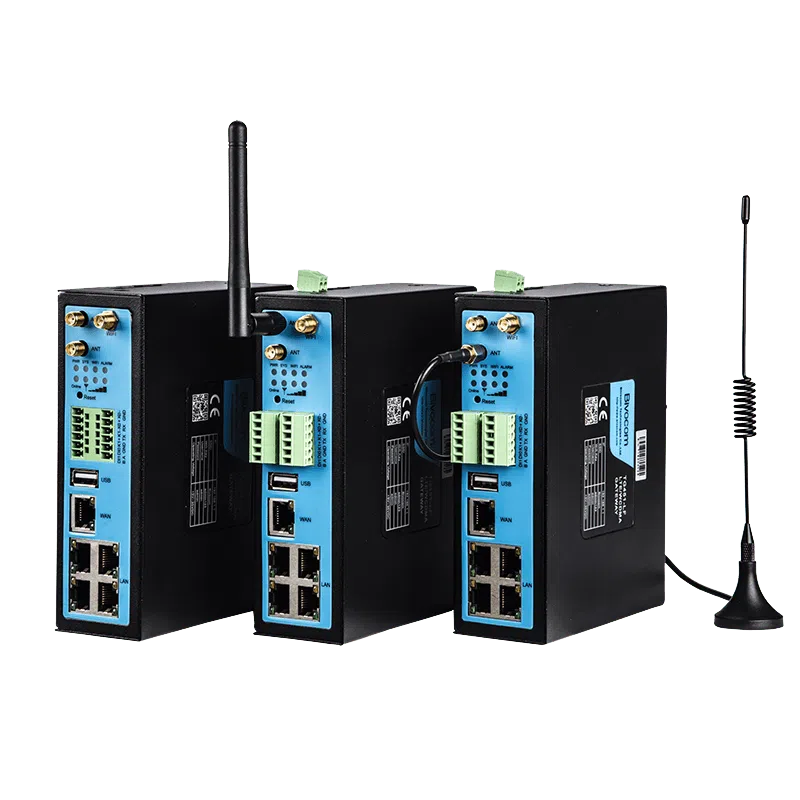

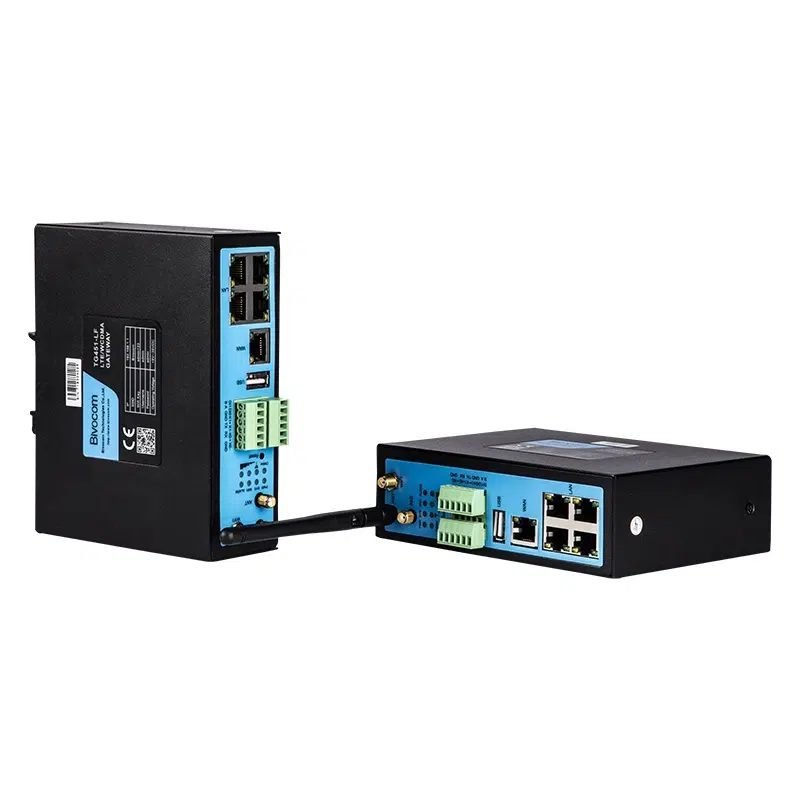

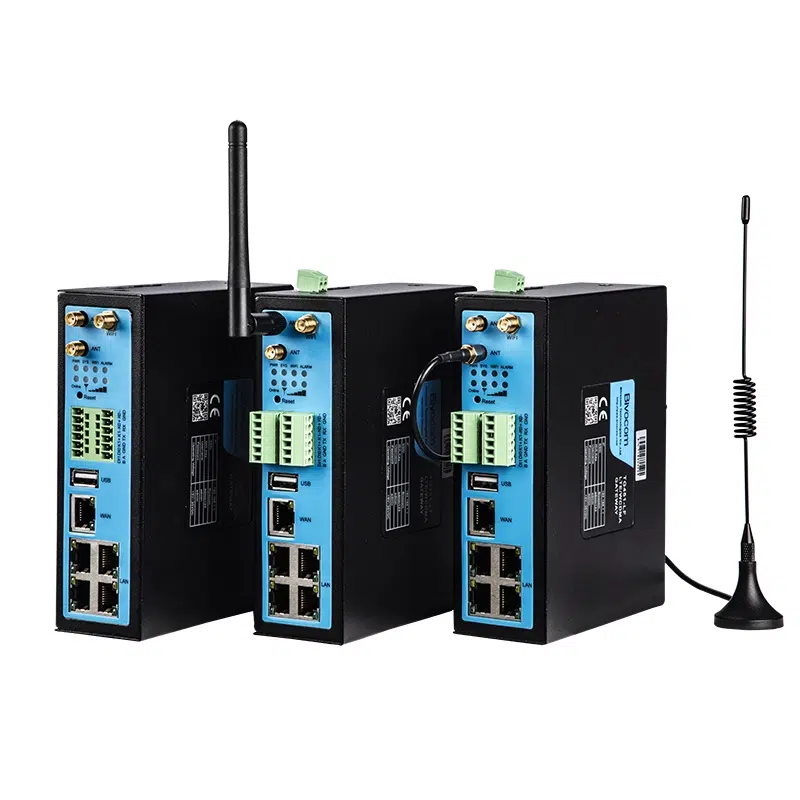

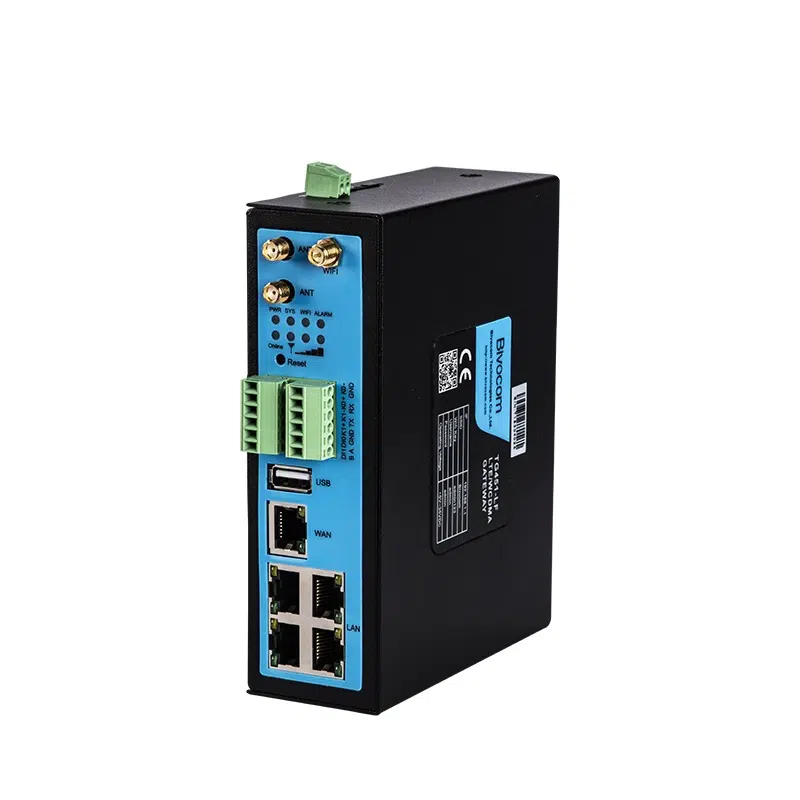

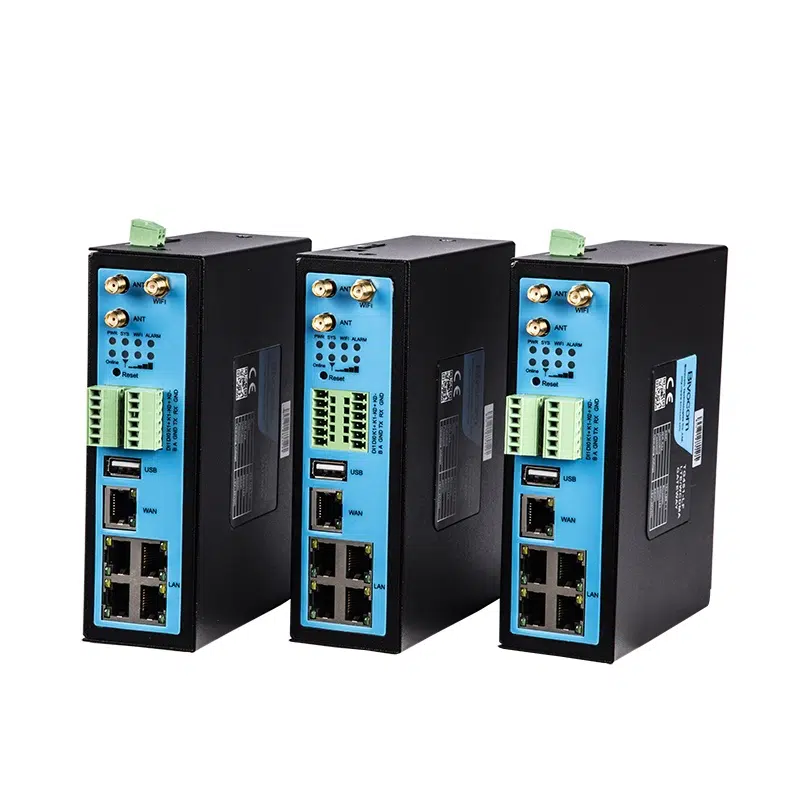

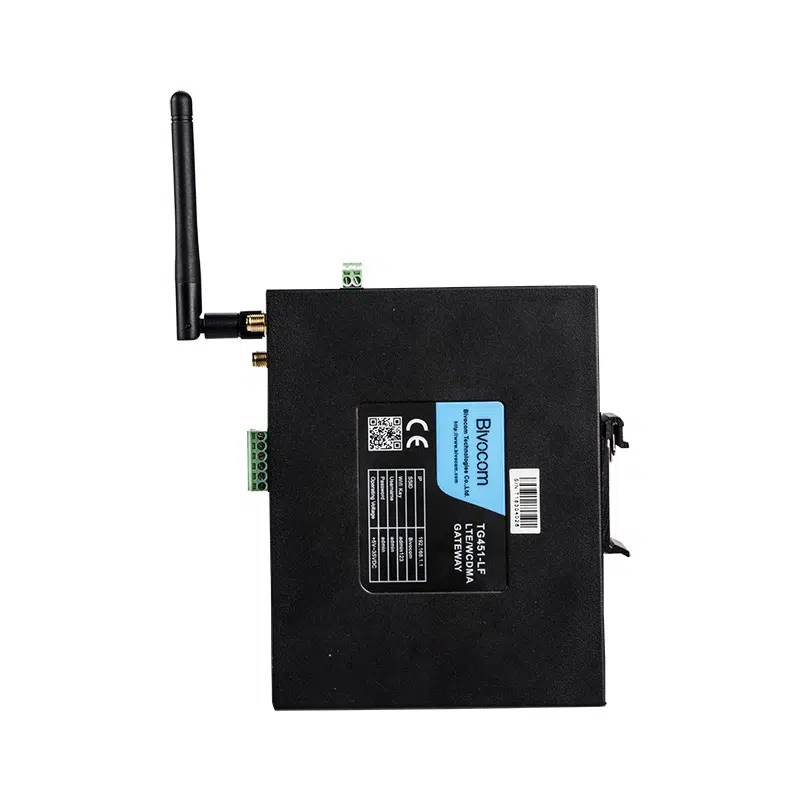

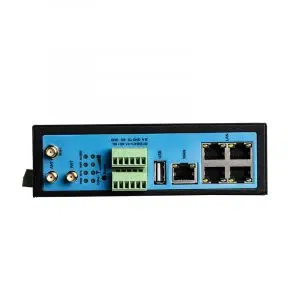

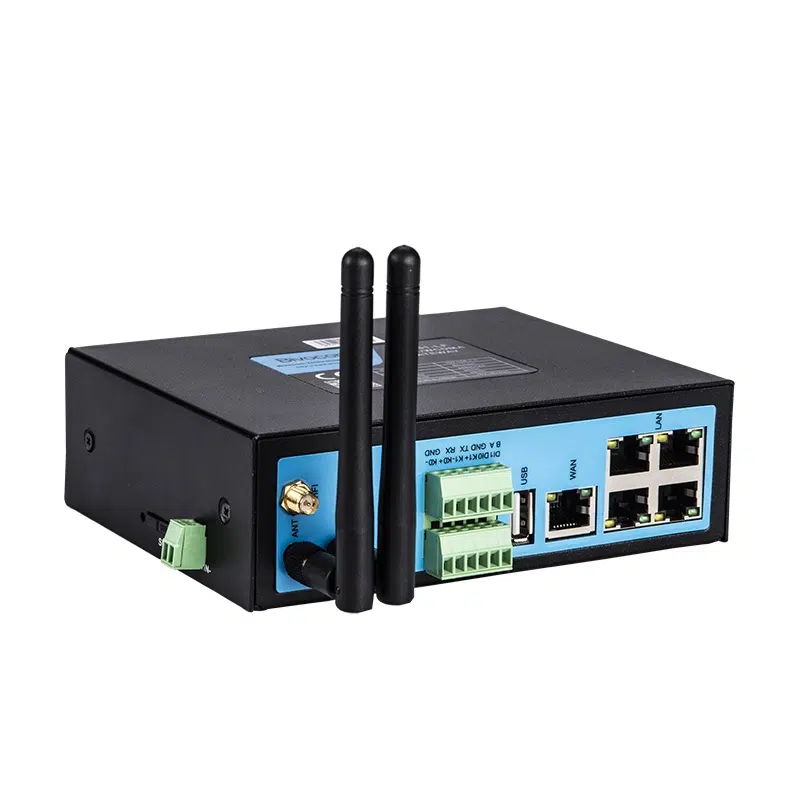

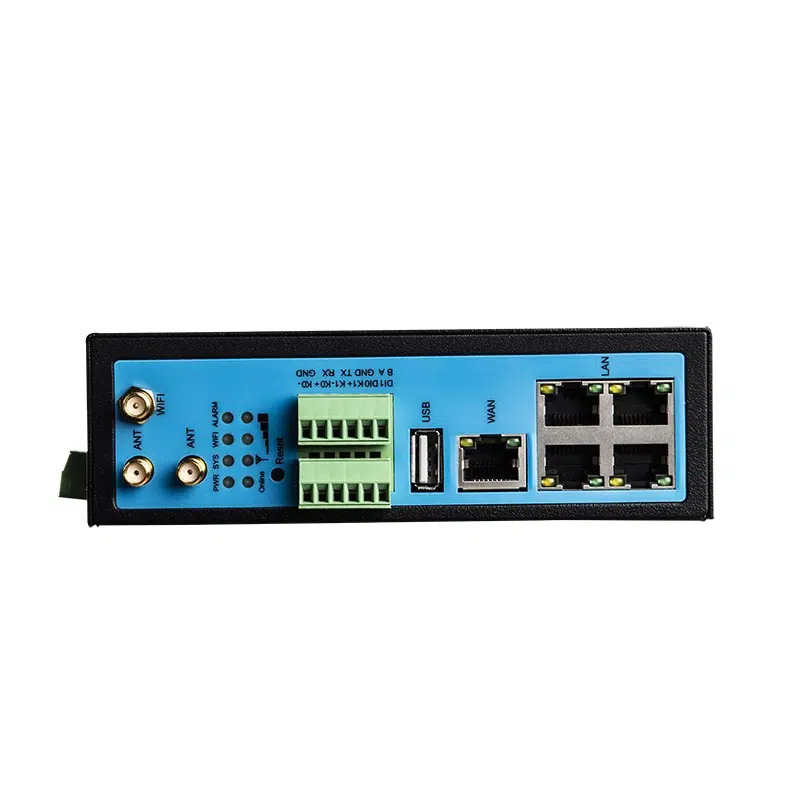

TG451 Series Gateway เป็นเกตเวย์เกรดอุตสาหกรรมประเภท 802.11 /b/g/n ซึ่งใช้ซีพียูอุตสาหกรรมแรงสูงชนิด 32-บิต รองรับซอฟต์แวร์หลาย layer ในตัวและมีกลไกการป้องกันฮาร์ดแวร์เพื่อความเสถียรและความปลอดภัยในการใช้งาน รองรับเครือข่ายมือถือจากผู้ให้บริการ 4G / 3G / 2G ทั่วโลก FDD-LTE, TDD-LTE และ WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X และ GPRS ด้วยโปรโตคอล VPN ที่หลากหลาย (IPSEC, PPTP, L2TP, GRE และ OpenVPN) รับรองความปลอดภัยในการรับส่งข้อมูล และด้วยอินเตอร์เฟสที่รองรับหลากหลายเช่น LAN 4 พอร์ต, WAN 1 พอร์ต, USB 1 พอร์ต, รีเลย์ (option เสริม), RS232 1 ช่อง, RS485 1 ช่อง, DI (ดิจิตอลอินพุต) 2 ช่อง, CAN 1 ช่อง (option เสริม), Dual SIM, GPS (option เสริม) WIFI ฯลฯ
เกตเวย์ซีรีส์ TG451 สามารถช่วยให้ผู้ใช้สามารถเข้าถึงอินเทอร์เน็ตได้อย่างรวดเร็วเพื่อให้มั่นใจว่าการส่งข้อมูลปลอดภัยและถึงปลายทาง เหมาะอย่างยิ่งสำหรับการใช้งาน IoT (Internet of Things) และแอปพลิเคชั่น M2M (Machine to Machine) มีการใช้กันอย่างแพร่หลายในแอพพลิเคชั่นประเภทต่างๆ เช่น การขนส่ง (รถตู้, รถบรรทุก), สมาร์ทกริด (smart grid), น้ำมันและก๊าซ (oil & gas), ตู้เอทีเอ็ม ตู้หยอดเหรียญ การชลประทาน, การเกษตร, เทคโนโลยีออโตเมชั่น (Industrial Automation) และอุตสาหกรรมพลังงาน เป็นต้น
- รองรับการพัฒนาเพิ่มเติมด้วย OPEN WRT
-

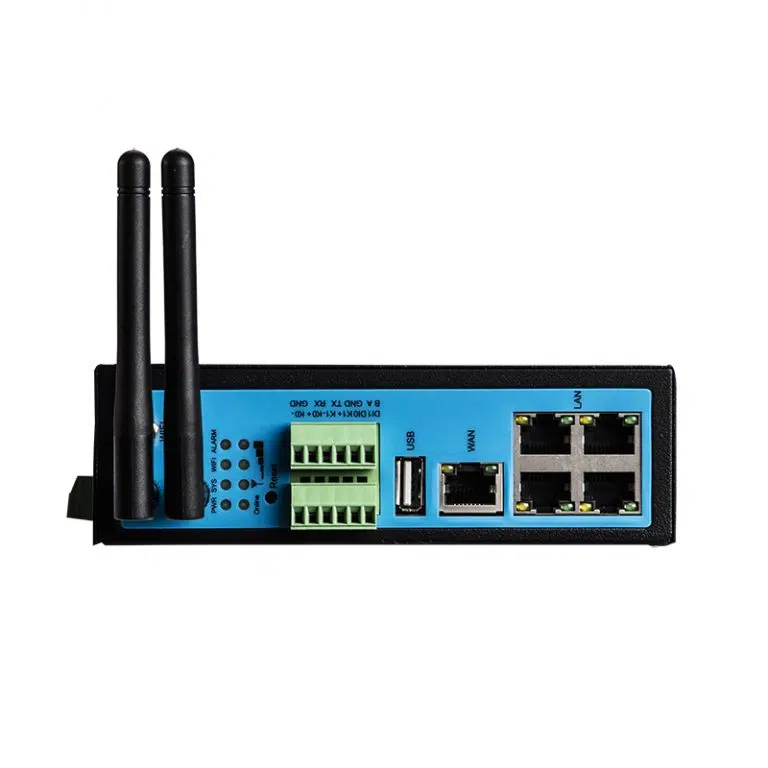

รองรับอินเทอร์เฟสหลากหลาย, 4x LAN ports, 1x WAN port, 1x USB port, 2x Relay (Option), 1x RS232, 1x RS485, 2x DI, 1x CAN (Option), GPS (Option)
- สัญญาณ WIFI แรงและความเร็วสูง

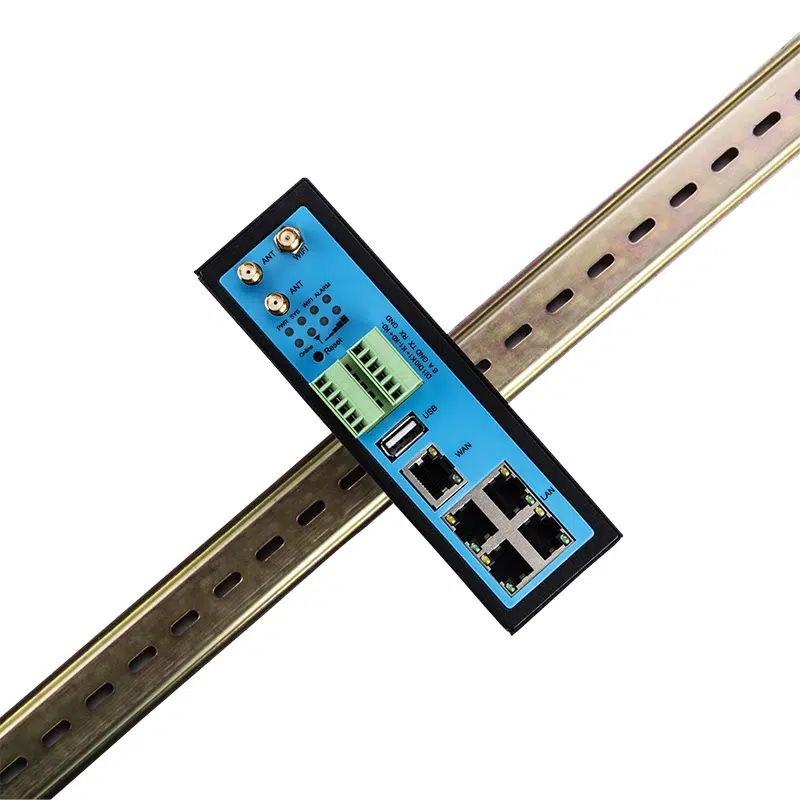

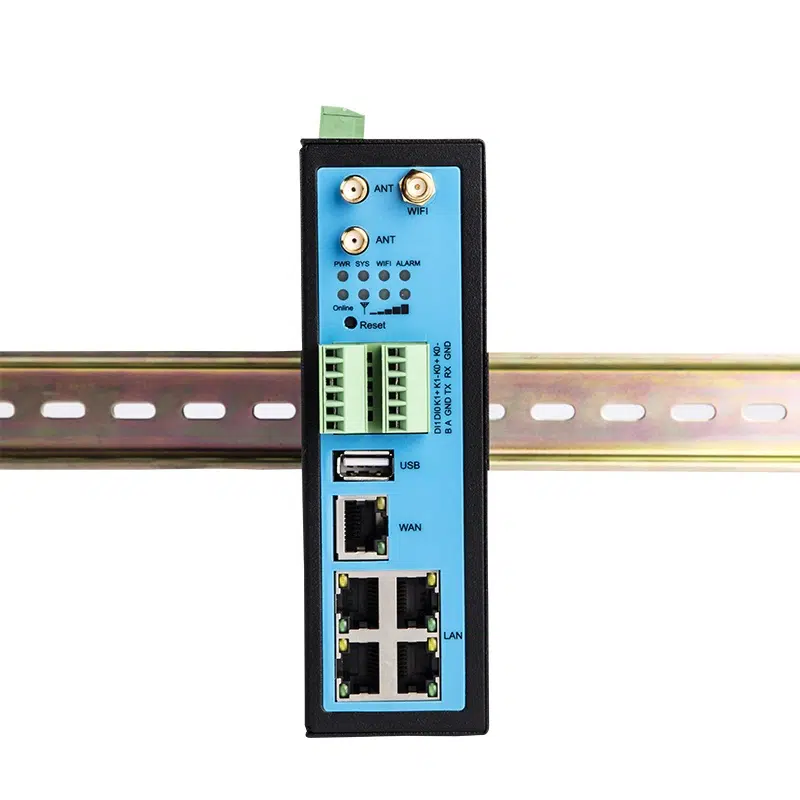

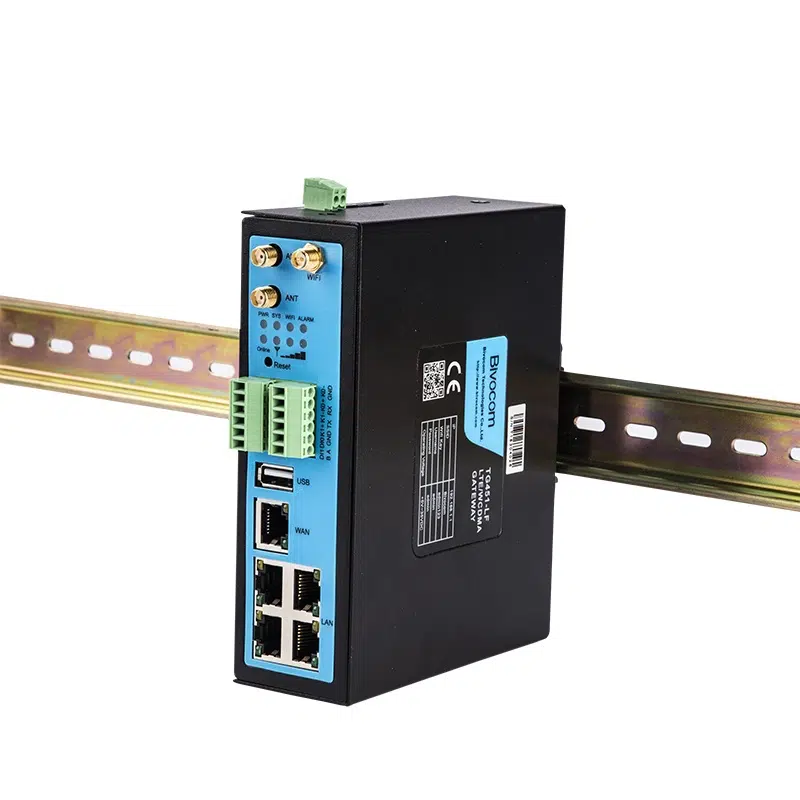

- รองรับการติดตั้งบนราง DIN
-
(ตัวเลือกเสริม) รองรับ Dual SIM บน dual module หรือ single module, failover and load balance (เฉพาะ dual module mode)
-
รองรับ DI (digital input) 2 ช่องสัญญาณ
- การเชื่อมต่อกับ 4G/3G/PPPoE/DHCP และ Static address, เปลี่ยนโหมดในตัวเองอัตโนมัติระหว่างตอนเสียบสายเชื่อมต่อกับ การเชื่อมต่อแบบไร้สาย
- DHCP server, DHCP binding MAC address, DDNS,Firewall, NAT, DMZ host, QoS, Traffic Analysis, Real-time display of data transfer rate, etc.
- APN/VPDN รับรองความปลอดภัยในการรับส่งข้อมูล
- รองรับหลากหลาย VPN protocols, IPSec, L2TP, PPTP and OPEN VPN.
- (ตัวเลือกเสริม) รองรับ MQTT protocol
- TCP/IP, UDP, FTP, HTTP network protocols.
-
SPI Firewall, DoS attack, VPN traversal, Access Control, Port Mapping, DMZ Mapping, Access Control List(ACL), IP-MAC binding and Clone function, etc.
- รองรับ heartbeat link detection และเชื่อมต่อกับ network ใหม่ด้วยตัวเองอัตโนมัติ
- ระบบตรวจสอบฮาร์ดแวร์และซอฟต์แวร์อัตโนมัติ และซ่อมแซมตัวเองอัตโนมัติ
- อัพเดทสถานะของเครื่องตลอดเวลา Status query of system, network connection, routing.
- การตั้งค่า Telnet, web, ssh configurations.
- สามารถติดตั้ง log ทั้งจากภายนอกผ่าน serial port และมีระบบ logging ภายในหรือจะ remote log ได้ และสามารถอัพเกรดจากทางไกล (Web remote upgrade) ได้
- ส่ง SMS ผ่าน web UI
- ตั้งค่าจากทางไกลได้ Remote configuration and management
คุณสมบัติทางเทคนิค
System
CPU: Industrial 32-bit
FLASH: 16MB (Extendable to 64MB)
SDRAM: 128MB (Extendable to 256MB)
Cellular Interface
4G/3G/2G for option (FDD-LTE, TDD-LTE, HSPA/WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X and GPRS)
Cellular Antenna Interface
Number of Ports: 2
Note: Standard SMA female antenna interface, characteristic impedance 50Ω

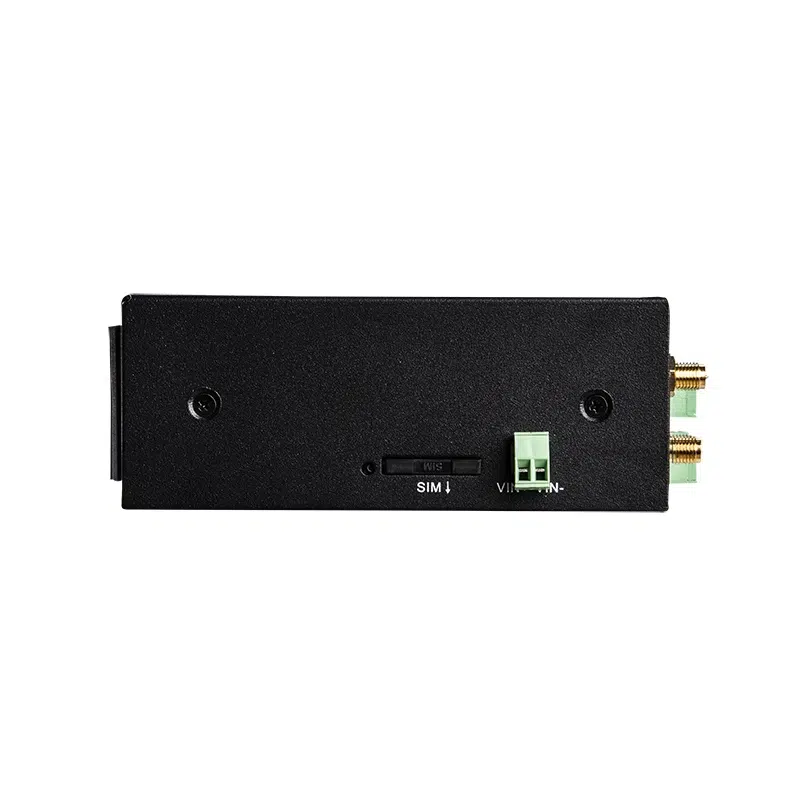

SIM Interface
Number of Ports: 1, or 2(Dual SIM is optional)
Note: Standard drawer type card holder, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Ethernet Port (RJ45)
Number of Ports: 5, 1x WAN, 4x LAN
Note: 10/100M, Auto MDI/MDIX, 1.5KV magnetic isolation protection
USB Port
Number of ports: 1x USB 2.0
Note: used for data storage (up to 128G) or gateway upgrade.
Relay(Option)
Number of ports: 2, up to 5A output
Note: to control the power supply of external devices.
DI(Digital Input)
Number of ports: 2
Input range: DC 0-30V
Note: to check the status of external devices.
CAN(Option)
Number of ports: 1x standard CAN interface
WIFI
Standard: IEEE802.11b/g/n for wireless LAN
Transmission Rates:
IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
Security: WEP, WPA/WPA2
TX Transmit Power: 21.5dBm (11g), 26dBm (11b)
RX Sensitivity: <-72dBm@54Mpbs
CPU: Industrial 32-bit
FLASH: 16MB (Extendable to 64MB)
SDRAM: 128MB (Extendable to 256MB)
Cellular Interface
4G/3G/2G for option (FDD-LTE, TDD-LTE, HSPA/WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X and GPRS)
Cellular Antenna Interface
Number of Ports: 2
Note: Standard SMA female antenna interface, characteristic impedance 50Ω
SIM Interface
Number of Ports: 1, or 2(Dual SIM is optional)
Note: Standard drawer type card holder, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Ethernet Port (RJ45)
Number of Ports: 5, 1x WAN, 4x LAN
Note: 10/100M, Auto MDI/MDIX, 1.5KV magnetic isolation protection
USB Port
Number of ports: 1x USB 2.0
Note: used for data storage (up to 128G) or gateway upgrade.
Relay(Option)
Number of ports: 2, up to 5A output
Note: to control the power supply of external devices.
DI(Digital Input)
Number of ports: 2
Input range: DC 0-30V
Note: to check the status of external devices.
CAN(Option)
Number of ports: 1x standard CAN interface
WIFI
Standard: IEEE802.11b/g/n for wireless LAN
Transmission Rates:
IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
Security: WEP, WPA/WPA2
TX Transmit Power: 21.5dBm (11g), 26dBm (11b)
RX Sensitivity: <-72dBm@54Mpbs
GPS (Option)
Built in external GPS module
Serial Interface (6-pin Industrial terminal block)
Number of interfaces: 2, 1x RS232, 1x RS485
Note: Built-in 8KV ESD protection for RS232, and 15KV ESD protection for RS485
Serial Communication Parameters
Baudrate: 300~230400bits/s
Data Bit: 5, 6, 7, 8 bits
Stop Bit: 1, 1.5, 2 bits
Check: No, Even-parity, Odd Parity, SPACE and MARK
Power Requirements
Standard Power: DC 12V/1.5A
Power Range: DC 5~35V
Note: Built-in power inverting protection and over voltage protection
Power Consumption
Communication: 121~280mA@12VDC
Standby: 115~210mA@12VDC
Scheduled Shutdown: 2mA@12VDC
LED Indicators
Power, System, WIFI, Alarm, Online, Signal Strength
Reliability
MTBF: >10,000hrs
EMC up to level 3
Use NTP technology, build-in RTC
SIM/UIM card port built-in 15KV ESD protection
Warranty
Warranty Period: 12 months
Environmental Limits
Operating Temperature: -35~+75ºC (-31~+167 ºF)
Storage Temperature: -40~+80ºC (-40~+176 ºF)
Ambient Relative Humidity: 93%±3%, non-condensing
Physical Characteristics
Protection Class: IP30, Housing and system are isolated safely, ideal for industrial automation application
Housing: Iron
Weight: 790g (1.74lbs)
Dimension: 145x143x45mm (5.71×5.63×1.77 inches), Antenna and other accessories not included.
Built in external GPS module
Serial Interface (6-pin Industrial terminal block)
Number of interfaces: 2, 1x RS232, 1x RS485
Note: Built-in 8KV ESD protection for RS232, and 15KV ESD protection for RS485
Serial Communication Parameters
Baudrate: 300~230400bits/s
Data Bit: 5, 6, 7, 8 bits
Stop Bit: 1, 1.5, 2 bits
Check: No, Even-parity, Odd Parity, SPACE and MARK
Power Requirements
Standard Power: DC 12V/1.5A
Power Range: DC 5~35V
Note: Built-in power inverting protection and over voltage protection
Power Consumption
Communication: 121~280mA@12VDC
Standby: 115~210mA@12VDC
Scheduled Shutdown: 2mA@12VDC
LED Indicators
Power, System, WIFI, Alarm, Online, Signal Strength
Reliability
MTBF: >10,000hrs
EMC up to level 3
Use NTP technology, build-in RTC
SIM/UIM card port built-in 15KV ESD protection
Warranty
Warranty Period: 12 months
Environmental Limits
Operating Temperature: -35~+75ºC (-31~+167 ºF)
Storage Temperature: -40~+80ºC (-40~+176 ºF)
Ambient Relative Humidity: 93%±3%, non-condensing
Physical Characteristics
Protection Class: IP30, Housing and system are isolated safely, ideal for industrial automation application
Housing: Iron
Weight: 790g (1.74lbs)
Dimension: 145x143x45mm (5.71×5.63×1.77 inches), Antenna and other accessories not included.
